Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Material / Metal Processed: Stainless Steel

Rated Input Voltage: 220 V

Wire Melting Type: Globular Transfer

Max. Load Power Capacity: 8

Rated Output Current (MIG): 210 A

Rated Output Voltage (MIG): 220 V

Rated Duty Cycle @40Â°C (MIG): 60%

Wire Feeding Speed: 1.2 m/min

Condition: New

Dimensions: 500*210*365mm

Usage: CO2 Shielded Welding Machine

Weight (KG): 25 KG

Warranty: 1 Year

Key Selling Points: Multifunctional

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction worksÂ

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Certificazione: CE, CCC, CCC, CE

After Warranty Service: Online support

Local ServiceÂ Location: None

Showroom Location: None

Marketing Type: New Product 2020

Voltage: AC 380+-10% V / 50~60 Hz

Informazioni di base

Certificazione: CE, CCC, CCC, CE

Termini di pagamento e spedizione

Packaging Details: Plastic film inside, EPE (Expand Aple Polyephylene) foam, Corrugated paper carton, Plastic stretch wrap outside.

Supply Ability: 8000 Set/Sets per Month

Descrizione di prodotto

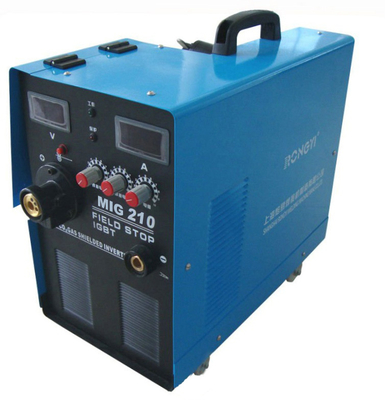

The features of DC MIG/MAG Inverter Welding Tool MIG-210 :

1.MOSFET inverter and soft-shift technology, high efficiency for the whole machine;

2. Portable, air cool, thermostatic protection,energy saving, easy for maintenance;

3. With built-in wire feeder;

4. Welding current and voltage can be adjusted continuously;

5. Applied for carbon steel, alloy steel, and stainless steel;

6. Suitable for flux (Gasless) welding wire and gas shielded MIG/MAG welding wire;

7. Complete accessories: welding torch, earth clamp, etc.

	MIG-210	MIG-250	MIG-250
Power supply voltage	AC 220+10% V / 50~60 Hz	AC 220+10% V / 50~60 Hz	AC 380±10% V / 50~60 Hz
Power supply capacity	8kVA	8kVA	8kVA
Rated output voltage range	18-27V	18-27V	18-27V
Rated output current range	60-210 A	60-250 A	60-250 A
Duty cycle	60%	60%	60%
Cosφ (η)	0.95	0.95	0.95
Welding wire deliver speed	2.7-13 m/min	2.7-13 m/min	2.7-13 m/min
Welding wire diameter	Φ0.8-1.2 mm	Φ0.8-1.2 mm	Φ0.8-1.2 mm
Protection grade	IP 21 S	IP 21 S	IP 21 S
Insulation grade	F	F	F
Net weight	25kg	25kg	25kg
Dim. of machine (mm)	500210365	500210365	500210365

* BUY WITH CONFIDENCE.

* QUALITY MACHINES MANUFACTURED BY RONGYI.

* FULL SERVICE AND PARTS BACK UP.

* 12 MONTHS WARRANTY.

The data in the above table is only for reference. Please subject to the nameplate on the device.
