Casa /Prodotti/sotto saldatore dell'arco/INVERTER Decapower MIG Cat Arc 3 in 1 Welder INVERTER 200a MIG Welder NO GAS 220V

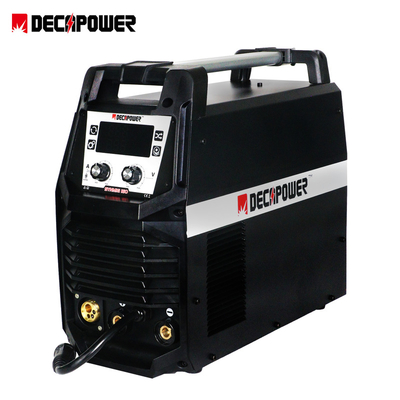

INVERTER Decapower MIG Cat Arc 3 in 1 Welder INVERTER 200a MIG Welder NO GAS 220V

1 Piece

MOQ

INVERTER Decapower MIG Cat Arc 3 in 1 Welder INVERTER 200a MIG Welder NO GAS 220V

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Material / Metal Processed: Aluminium alloy/Fe

Rated Input Voltage: 220 V

Wire Melting Type: Short Circuit Transfer

Max. Load Power Capacity: 6.5KVA

Rated Output Current (MIG): 180 A/120A

Rated Output Voltage (MIG): 24 V

Rated Duty Cycle @40Â°C (MIG): 40%

Wire Feeding Speed: 15 m/min

Condition: New

Dimensions: 66*32*51cm

Usage: Welding

Weight (KG): 18.5 KG

Warranty: 15 months

Key Selling Points: Multifunctional

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Other

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Feature: INVERTER

Flux cored/Solid Wire Welding: 0.6/0.8/1.0mm

Aluminium wire Welding: 1.0/1.2mm

MMA electrode Dia: 1.6-4.0mm

Inductance Adjustment for MIG/MAG: Available

VRD: ON/OFF

Anti-Stick: ON/OFF

Hot-START: 0-10

ARC-FORCE: 0-10

Synergic MIG/MAG welding: YES

Showroom Location: None

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: Decapower mig tig arc 3 in 1 welding equipment INVERTER 200a mig welder NO GAS 220V PACKAGED IN Honeycomb box

Supply Ability: 10000 Piece/Pieces per Month

Descrizione di prodotto

Products Description

The SYNMIG welder is an inverter-based Half-bridge Microprocessor controlled portable welding machine. It integrates multiple welding process such as GMAW, FCAW, SMAW & GTAW, preset parameters and multiple adjustable parameters to adapt to welding of various materials and sizes.

With the Digital displayer and quick Synergy regulation of welding parameters, it brings you the unique welding experience.It’s not only do the welding jobs easily, but also help beiggners learn the parmeter setting between the wire feeding speed and ARC Volt.

What’s more, the expreinced operator can also intervene manually along the arc length.

Automatic Adjustment of Parameters wIth Synergy , Friendly to New Welders.

Solid/Aluminium/Flux wire welding MMA welding/Argon Tungsten welding

Driven by 45Watt Electric Motor, supplies stable feeding speed 15m/min

Easy to Understand Visiual Interface with Digital Display

Overheating Automatic Power-off Protect Function

More Sub-functions Bring a Stronger Sense of Controllability to Welding

The High Duty Cycle Brings Longer Sustainable Use Time

Satisfying the User’s Welding Habit.Improve the Welding Quality

Suitable for Welding with Multiple Functions and Multiple Materials

Product Paramenters

Model	SYNMIG-180BV
Type	IGBT Inverter Technology
Input Voltage	AC~ 110V/220V +/- 15%
Input Power	6.5Kw
Open Circuit Voltage	60V
Wire Melting Type	Short Circuit Transfer
Max Output Current (MIG)	180A@220V, 120A@110V
Max Output CUrrent (MMA)	180A@220V, 120A@110V
Max Output CUrrent (TIG)	180A@220V, 120A@110V
Wire Feeding Speed	15m/min
Suggested Electrode Rod.	1.6mm/2.5mm/3.2mm/4.0mm
Suitable Welding Wire Size	0.8mm/1.0mm/1.2mm
Shell Protection Grade	IP21S
Quick Connctor size	DKJ30-50 (Dia. = 13mm.)
MIG Torch Connector	EURO type
Machine Diemension	580x280x420mm
Packaging	1pc/Brown Carton or Honeycomb Carton
Master Carton Size	660x320x510mm
Warranty Period	15 months
