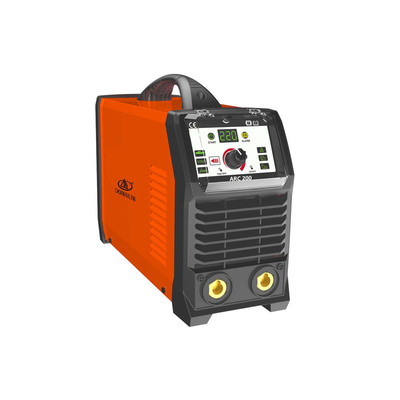

PORTABLE 1Phase 220V, 200 Wide ARC Water Proof Voltage: 95~295V Arc Generator Welder, Portable Inverter Welding Machine

500.0 Sets
MOQ
PORTABLE 1Phase 220V, 200 Wide ARC Water Proof Voltage: 95~295V Arc Generator Welder, Portable Inverter Welding Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Rated Input Voltage: 95-295
Rated Duty Cycle @40°C: 60%200A 100%120A
Max. Load Power Capacity: 46
Rated Output Voltage: 70 V
Rated Output Current: 200 A
Condition: New
Pulse Frequency: 50/60
Dimensions: 290x135x220mm
Usage: Metal Welding
Weight (KG): 4.0 KG
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Machinery Repair Shops, Farms, Home Use, Retail, Construction works
Feature: PORTABLE
Power(W): 220V
After-sales Service Provided: Online support
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: welding machine by Standard export cartons with plastic foam
Descrizione di prodotto
Product Description



1, Advanced inverter IGBT technology, single phase, portable inverter stick welder, MMA/Lift TIG

2, Easy arc-starting, stable welding current and good welding shape, by the function of anti-stick, arc force, hot start

3, Compact size, light weight and power saving

4, Intelligent protection:Over voltage, low voltage, over heat and over current

5,Automatic compensation for voltage fluctuation, compatible with power generator

6. Vey suitable for the welding of mild steel, mild alloy steel, stainless steel, carbon steel, cast iron, copper, etc

7, Widely used in acid and basic electrode welding







Model/Parameters ARC 200
power supply voltage(V) 1Phase 220V, Wide Voltage: 95~295V
Fre.(HZ) 50/60
Rated Input Power (KW) MMA: 10.6, TIG:8.3
Rated input current(A) MMA: 46, TIG 36
Duty Cycle(40℃ 10Min)

25% 200A

60% 130A
100% 80A
No Load Voltage(V) 70
Welding Current Range(A) 10~200
Efficiency ≥80%
Net Weight(Kg) 4.0
Dimensions(mm) 280x135x220
Electrode Diamerter(mm) Φ1.6~Φ4.0
Electrode Type 6013,7018 etc.
power factor 0.65
Insulation Class H
Protection Class IP23
Cooling AF
Product Detail
