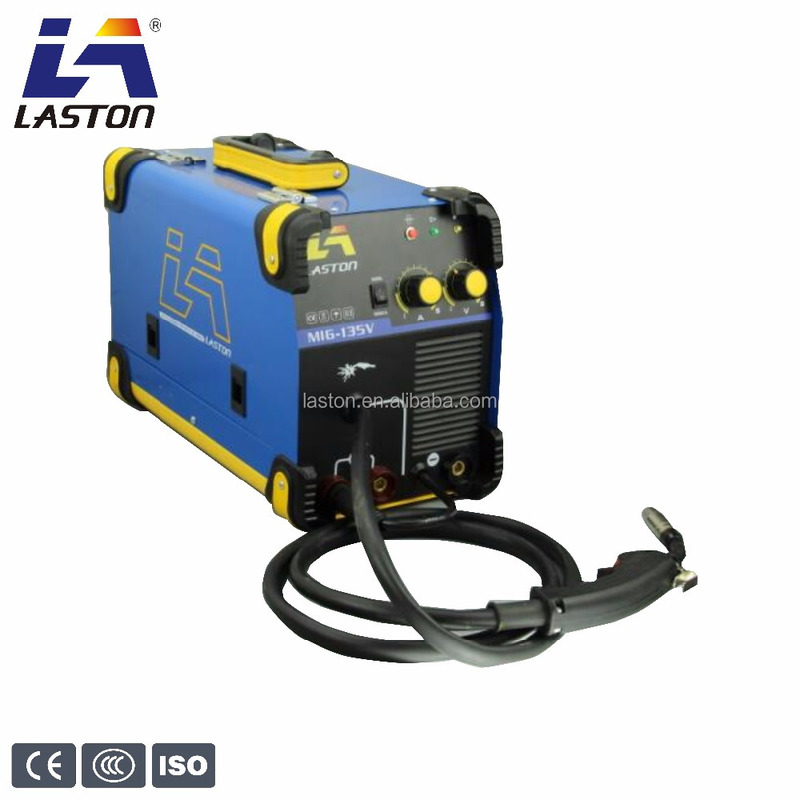

Portable Single Phase Arc Electric Spot MIG Welding Welding Machine

100 Cartons
MOQ
Portable Single Phase Arc Electric Spot MIG Welding Welding Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Model Number: MIG100/MIG135/MIG175/MIG195
Arc Current: 20-190A
Pulse Frequency: 50HZ
Pilot Arc Current: 20-190A
Rated Duty Cycle: 60%
Motor Type: AC/DC
Dimensions: 480*240*370mm
Usage: Welding
Voltage: AC220V±15%50Hz
Power: 3.25-7.6kva
Warranty: 1 Year
After-sales Service Provided: No overseas service provided
Certificazione: CE Certification
Color: Customized Color
Type: IGBT
Name: MIG MMA WELDING machine
Weight: 11KGS
Packing: CARTON BOX
Power factor: 0.73
Technology: IGBT
Protection Class: IP21S
Frequency(Hz): 50HZ
Function: Inverter IGBT Welding Machine
Informazioni di base
Certificazione: CE Certification
Model Number: MIG100/MIG135/MIG175/MIG195
Termini di pagamento e spedizione
Packaging Details: Packed in Kraft box 20':810PCS 40'HQ':1900PCS
Supply Ability: 40000 Carton/Cartons per Month
Descrizione di prodotto

single phase portable arc spot MIG  electric welding machine



Product Description



Feature:

1.IGBT inverter technology ,energy saving

2.PWM pulse width control,technology,special performance ,accurate current control,stablearc passing.

3.Slow wire feeding ,arc end with small balls clean ,electronic and inductance regulating ,shielding gas post flow functions

4.Over current ,over heat ,over load ,over voltage protection .Special apperance wire feeder integrated ,portable

5.Suitable for welding mild steel ,low alloy steel metal sheet

ITEMMIG-100MIG-135MIG-175MIG-195
POWER VOLTAGEAC220V±15%50HZAC220V±15%50HZAC220V±15%50HZAC220V±15%50HZ
Rated Input capacity(KVA)3.254.16.87.6
Rated input current range(A)14.818.73135
Actual output current(A)100120170190
No-load voltage(V)44445555
DUTY CYCLE(%)60603030
EFFICIENCY(%)80808080
POWER FACTOR 0.730.730.730.73
Insulation classFFFF
Protection ClassIP21SIP21SIP21SIP21S
Usable wire(mm)0.6-0.8mm0.6-0.8mm0.6-1.0mm0.6-1.0mm
Dimension(mm)480*220*340480*220*340480*240*370480*240*370
Weight(kg)101011.411.4

Package & Payment

 Factory standard packing is kraft box and also you can choose the other package which like.

LEAD TIME :25-35DAYS

DELIVERY WAY :BY SEA

SHIPPING PORE: NINGBO OR SHANGHAI

TRADE TERM : FOB ,CIF AND CFR

PAYMENT:TT/LC/western union



Accessories

 All the accessories are following:



Certifications







Company Information

1.FACTORY AERIAL VIEW



Established in 2001,Zhejiang laoshidun welding equipment Co.Ltd specialized in Welding Machine, is one of the largest professional manufacturers and exporters of Welding Machine, Air Compressor and etc. Our factory covers an area of 60.000 square meters with 500 staffs and 4 assembling lines. The annual volume reaches 400000pcs.

We have wellequipped facilities and excellent quality control throughout all stages of production enables us to guarantee all customers’ satisfaction. All of our products comply with international quality standards ,such as CE ,TUV and ISO9001:2000 quality system. With the excellent products and great reputation, we have gained a global sales network of our main market as Europe,South America,Southeast Asia and Middle East.

We will always maintain a close contact with customers, commit to developing high quality products to provide optimized service, realizing the harmonious development between Laston and the customers.

2.WORKSHOP AND OFFICE AREA



3.LASTON TEAM

Exhibition Show

                                                                Our customers all over the world,we sales our machines to Russia,Brazil,Thailand,Mexico,Argentina,                             UK,Indonesia,Malaysia,Chile,Spain,Vietnam,Belgium,Turkey,Australia,Kazakhstan,Holland,                             Iran,Israel,India,Slovakia,Bangladesh,Ukraine,Lebanon,Japan and so on.

FAQ

Q: Are you a factory or trading company?

A: We are manufacturing factory.



Q: Where is your factory located?

A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,
Wenling City, Zhejiang Province, China.


Q:How can I visit there?
A:You can fly to Taizhou airport, Ningbo airport or Shanghai air port.
Or you can take train to Wenling Station. Then inform us, we’ll come to pick you up!

Q:How many people in your factory?
A:About 200-300 people.

Q:How do you control the quality?
A:Before we produce the machine,we have the IQC to check the materials first and when we produce,the QC will check the machine which in the product line,and when we finished the QC will check it again and also before we send the goods to you,you can come to our factory checking.
